Cognex In-Sight IS7801M-363-50 Machine Vision Camera Kit
Industrial machine vision package built around a Cognex In-Sight 7801M monochrome smart vision system.
The In-Sight 7801 platform is designed for industrial inspection, measurement, identification, positioning, assembly verification and other automated machine vision applications. Cognex specifies the 7801 with a CMOS global-shutter image sensor and Gigabit Ethernet connectivity.

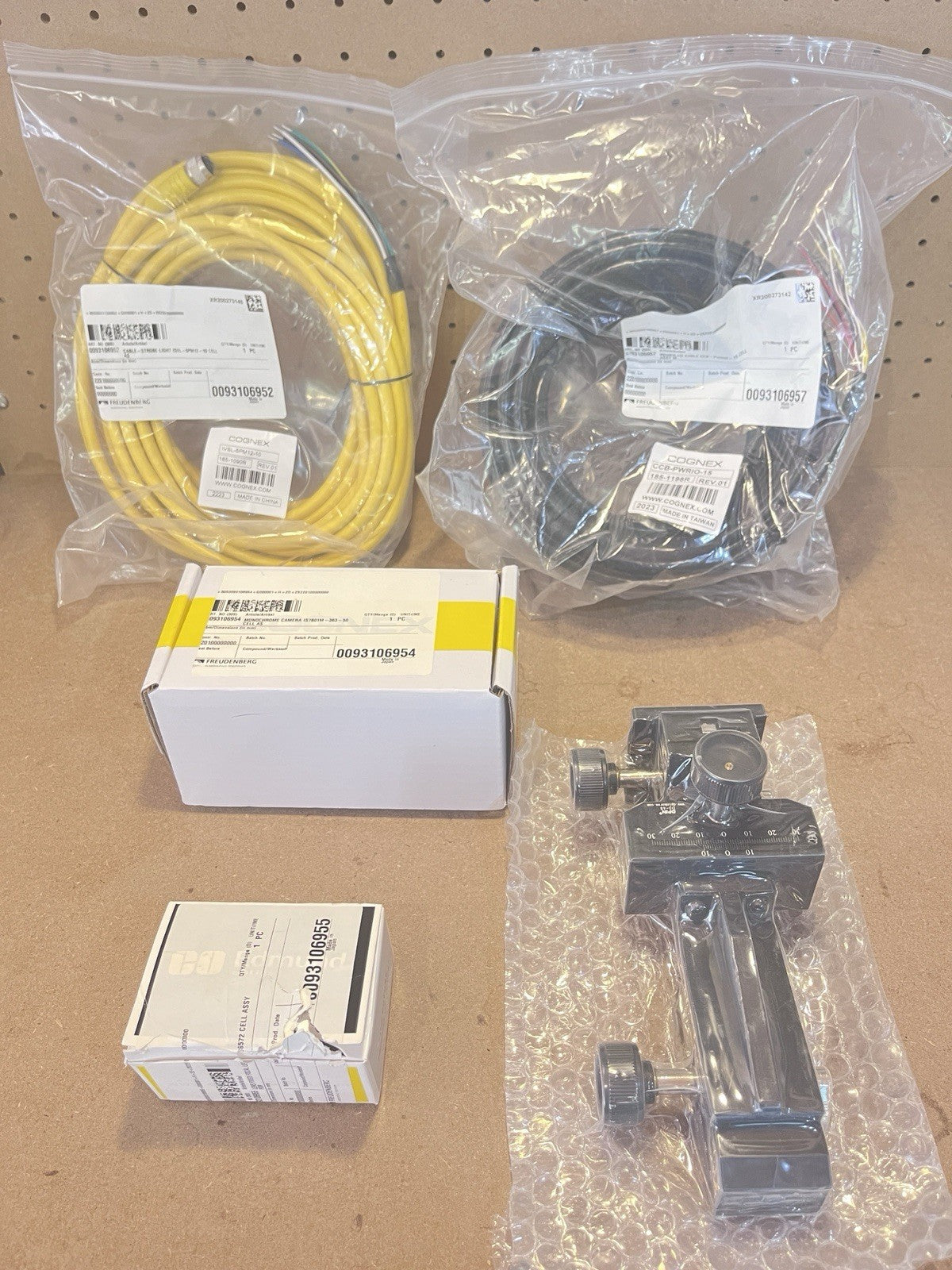

Included in this listing:

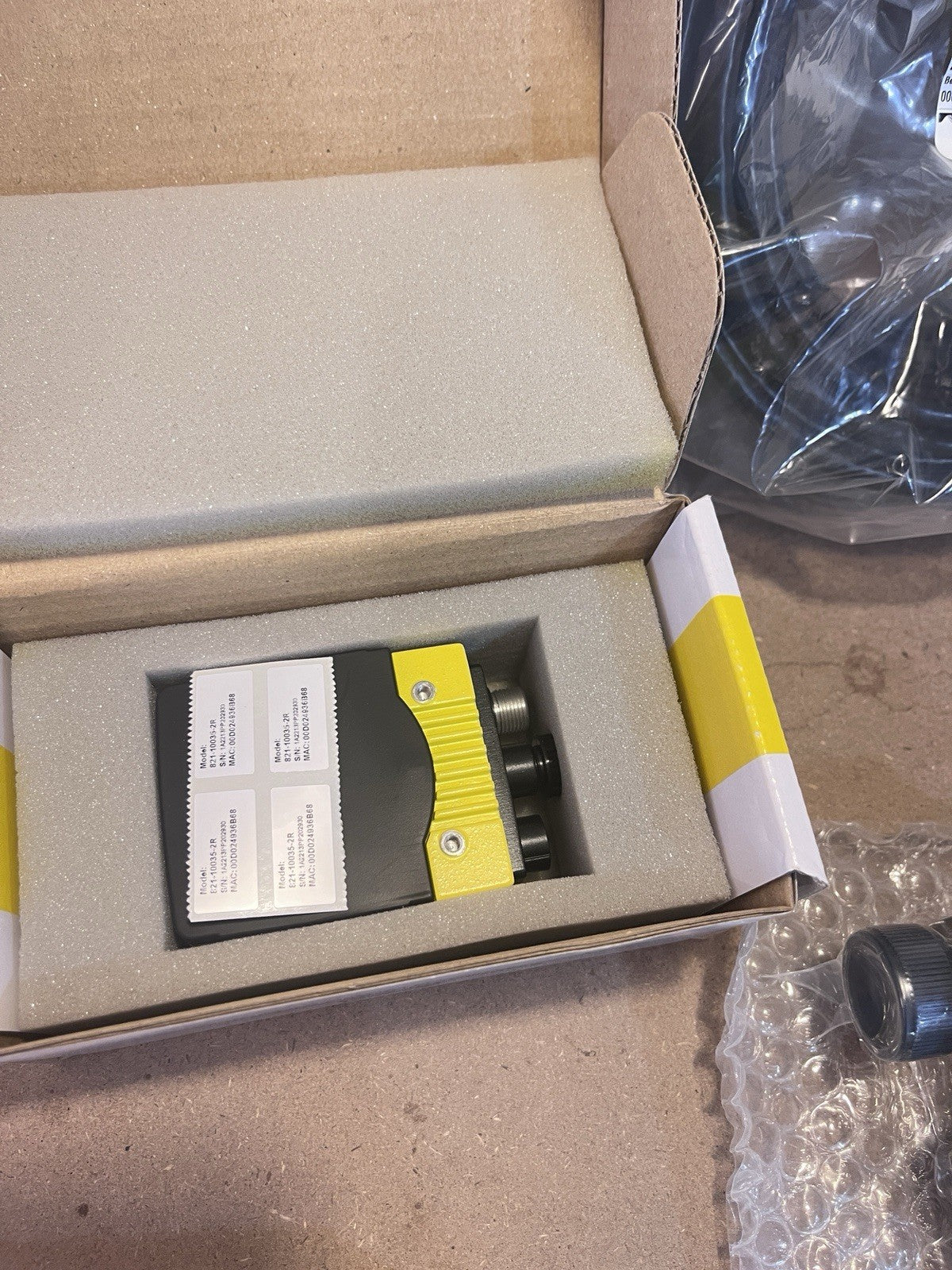

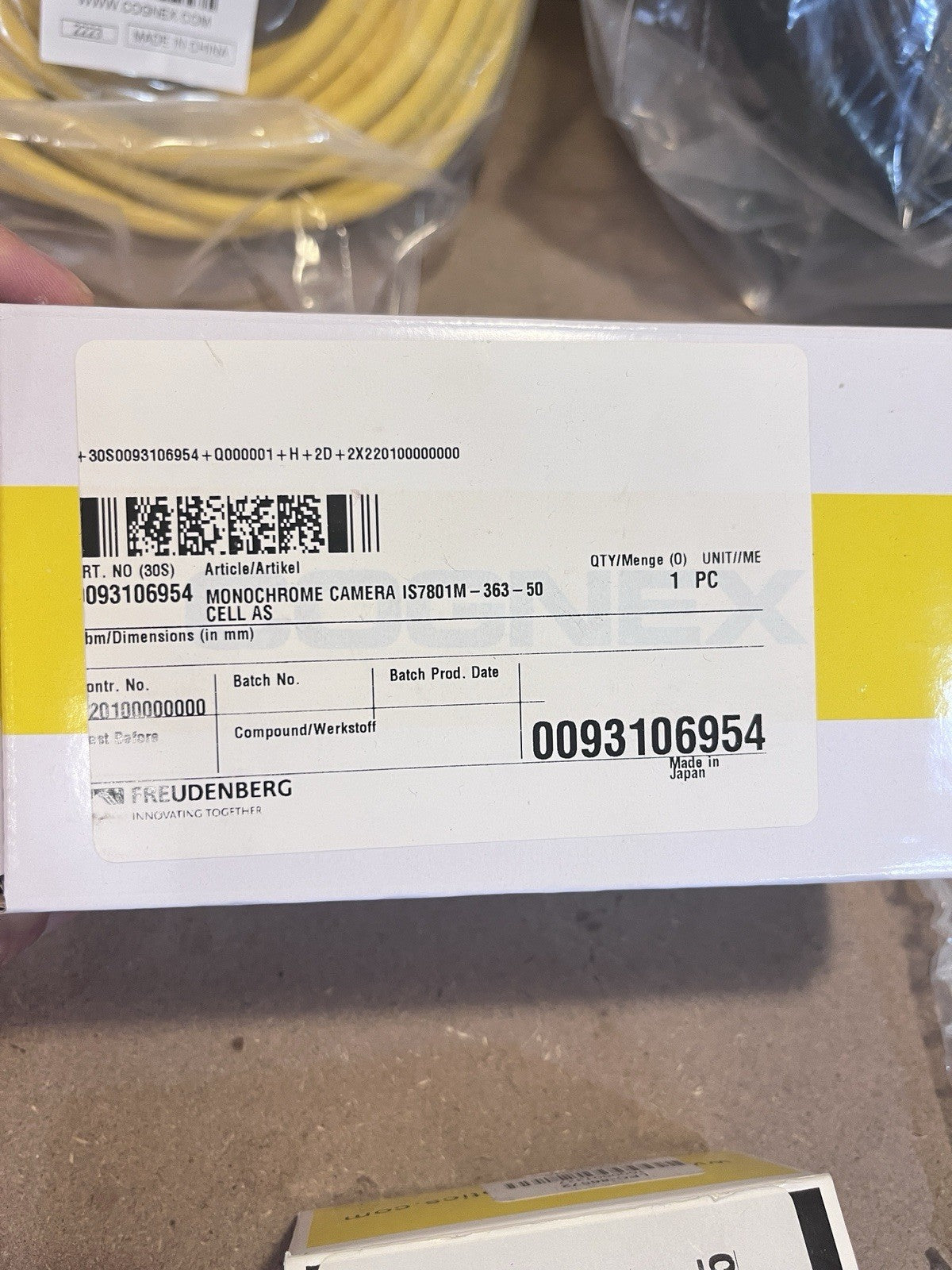

• 1 × Cognex IS7801M-363-50 monochrome vision system
• 1 × Edmund Optics 86-572, 25mm F/1.8 industrial machine vision lens

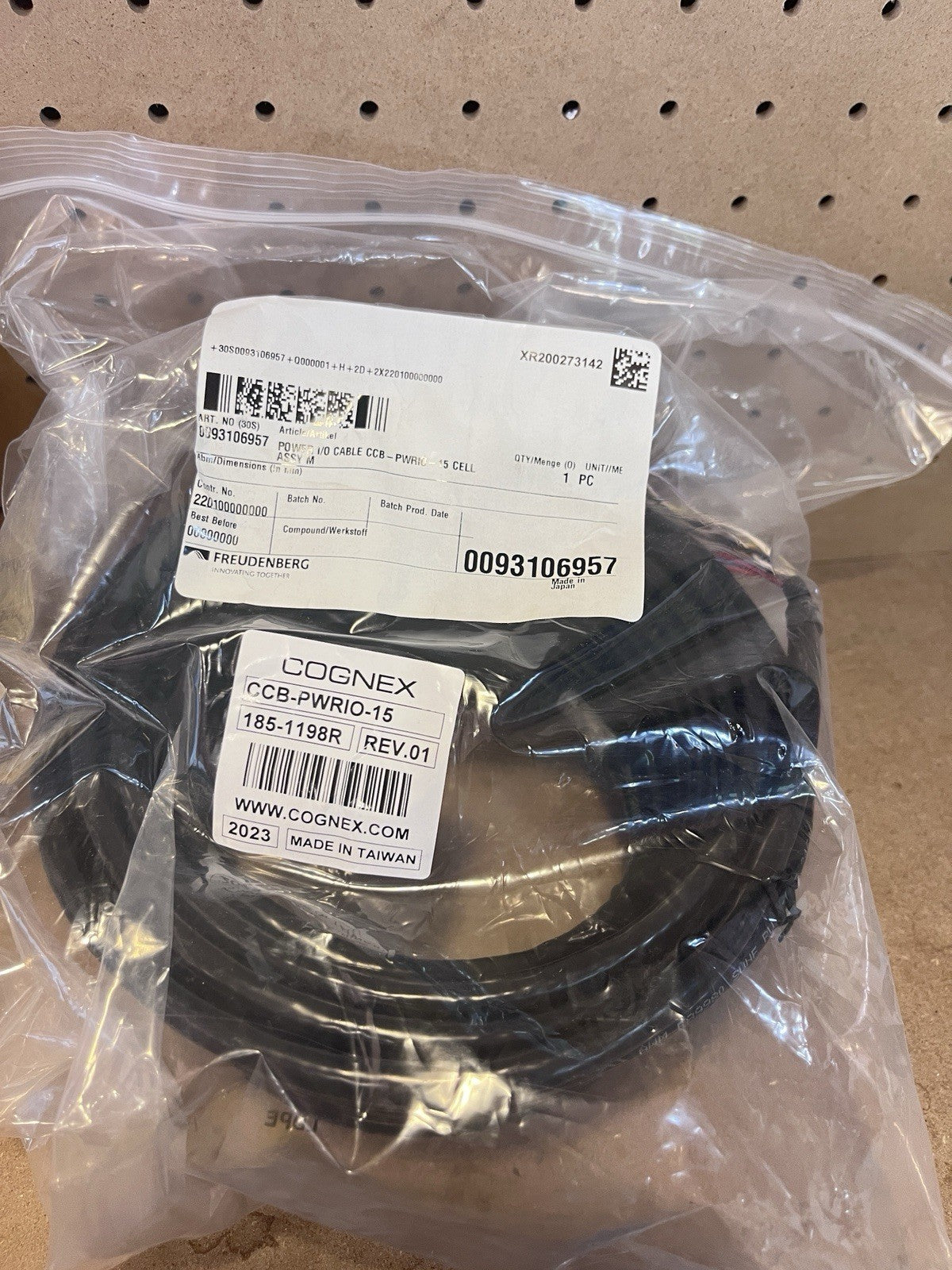

• 1 × Cognex power / I/O breakout cable

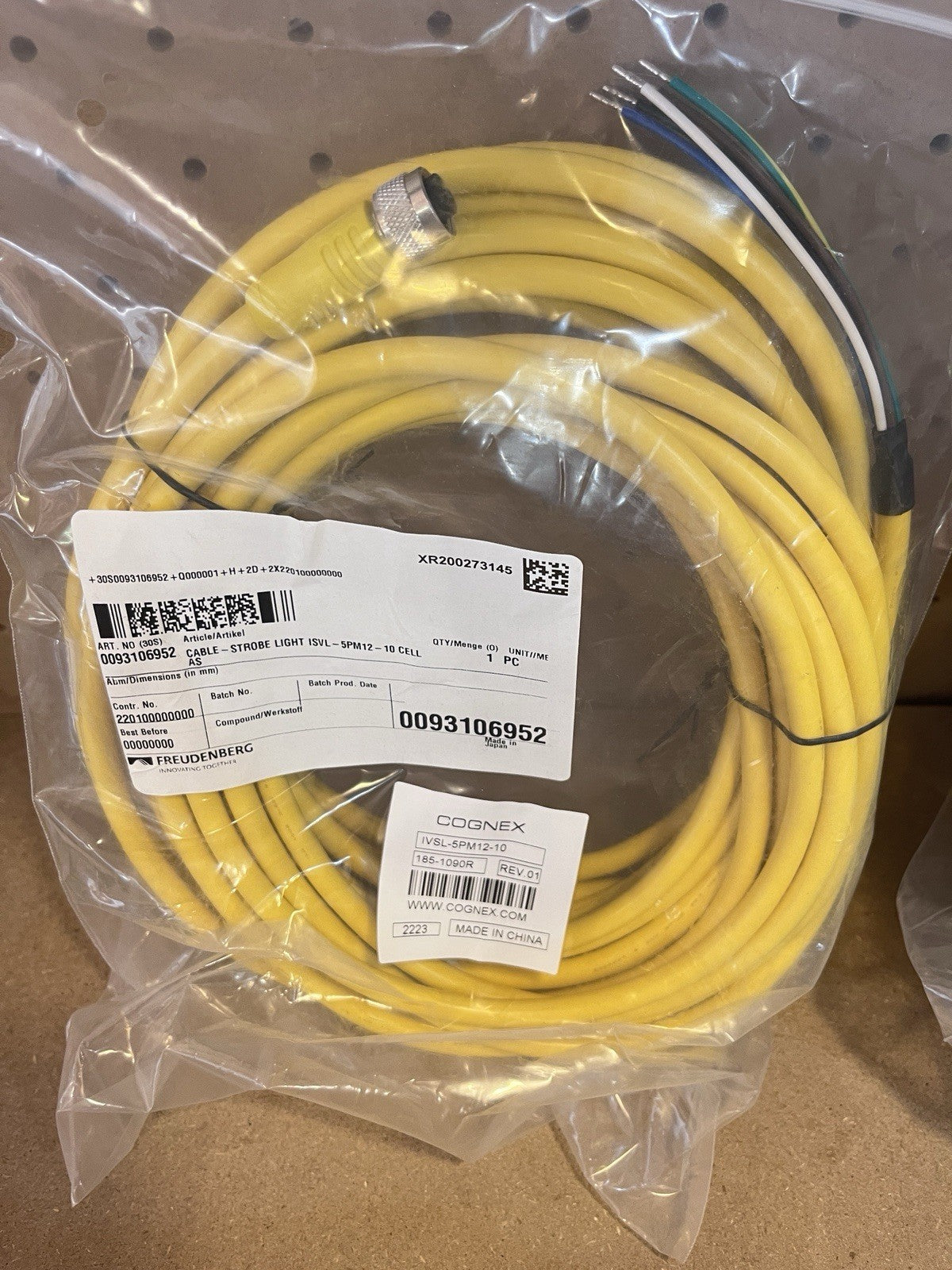

• 1 × Cognex external light connection cable
• 1 × DPIN D3-48 precision multi-axis positioning stage
The power / I/O breakout cable provides connections for external power, acquisition trigger, general-purpose inputs and high-speed outputs.
The Cognex 7000 Gen2 platform also supports an external lighting connection; the camera can provide 24VDC power to supported external lighting.

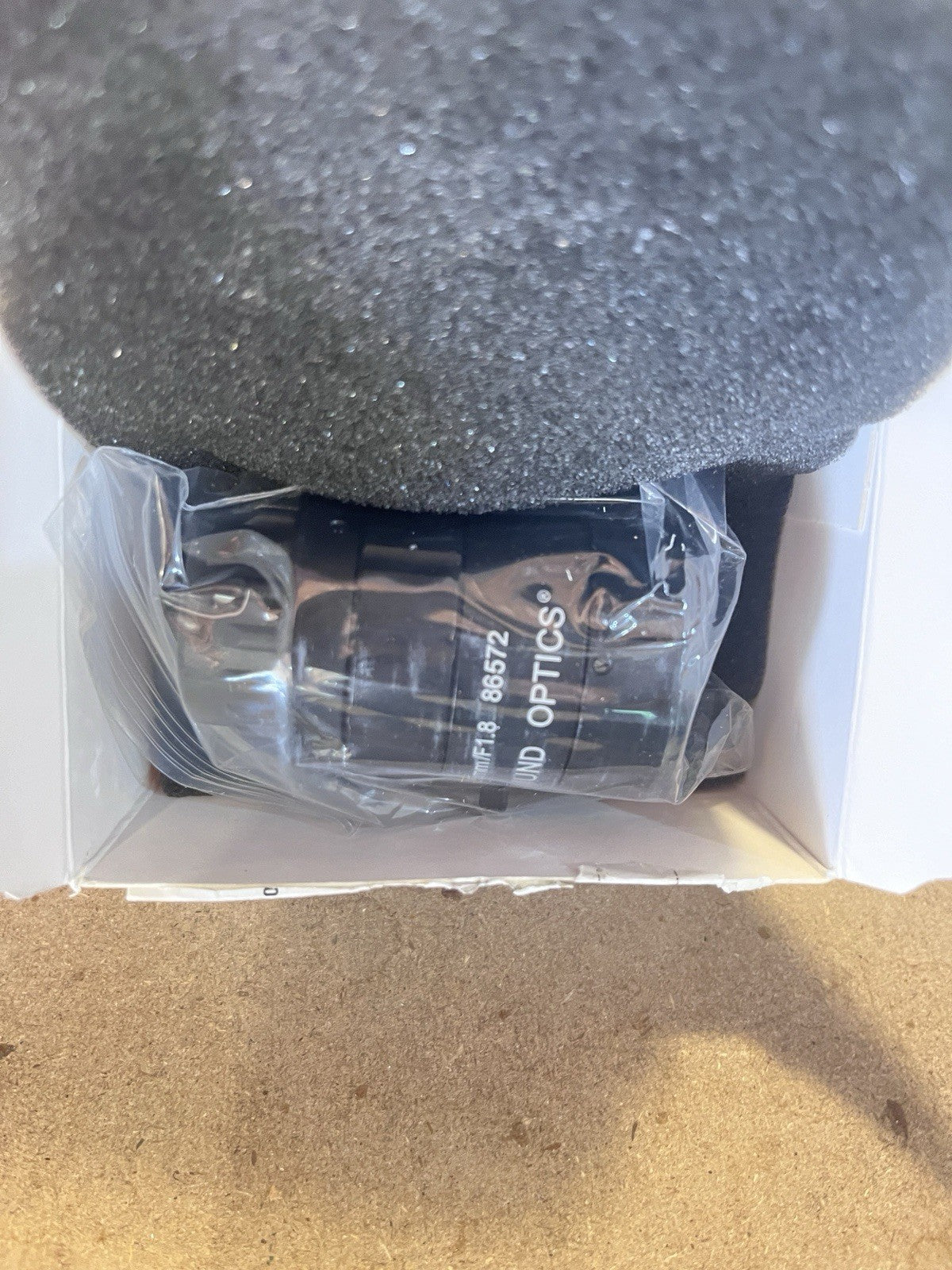

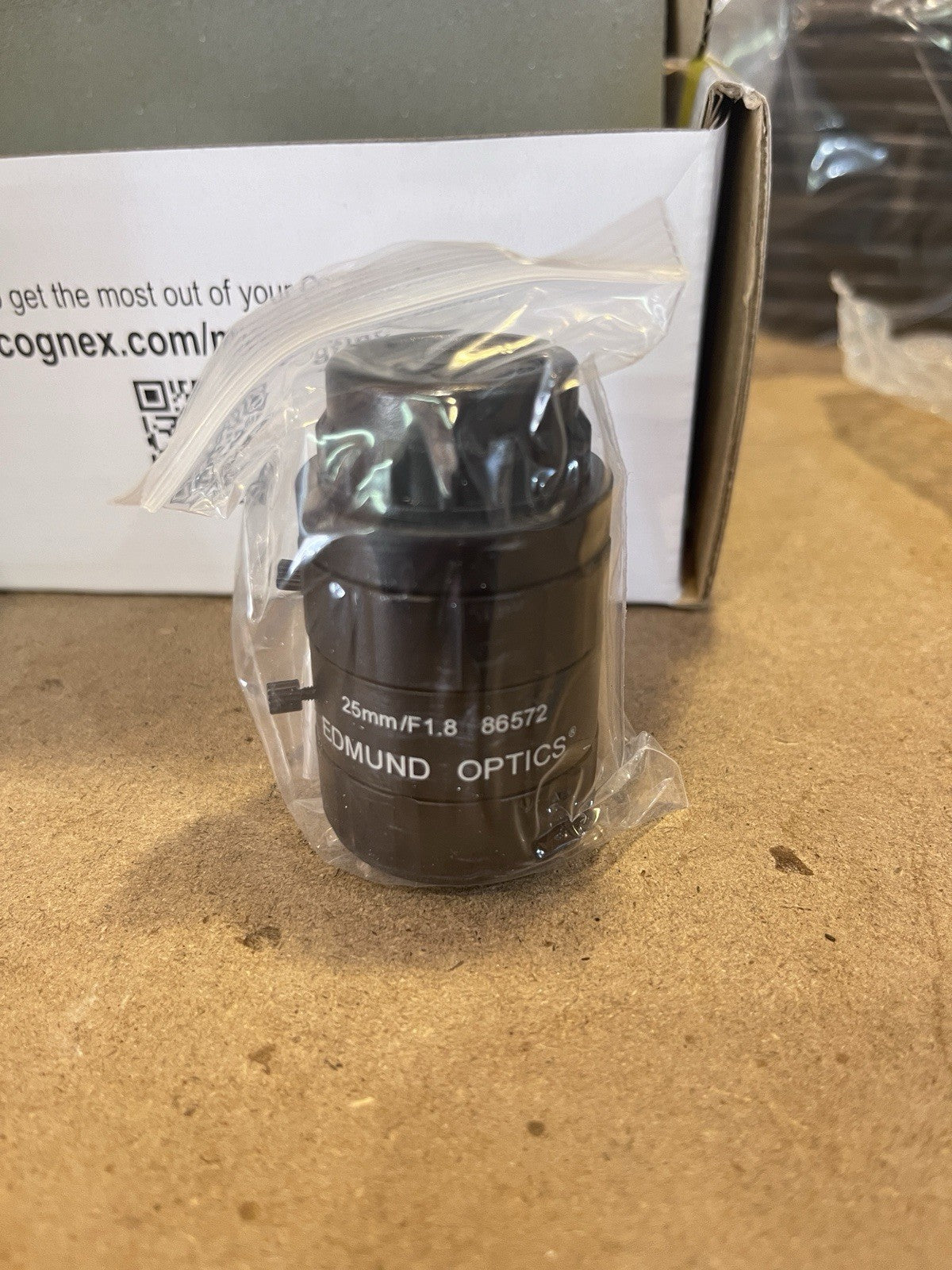

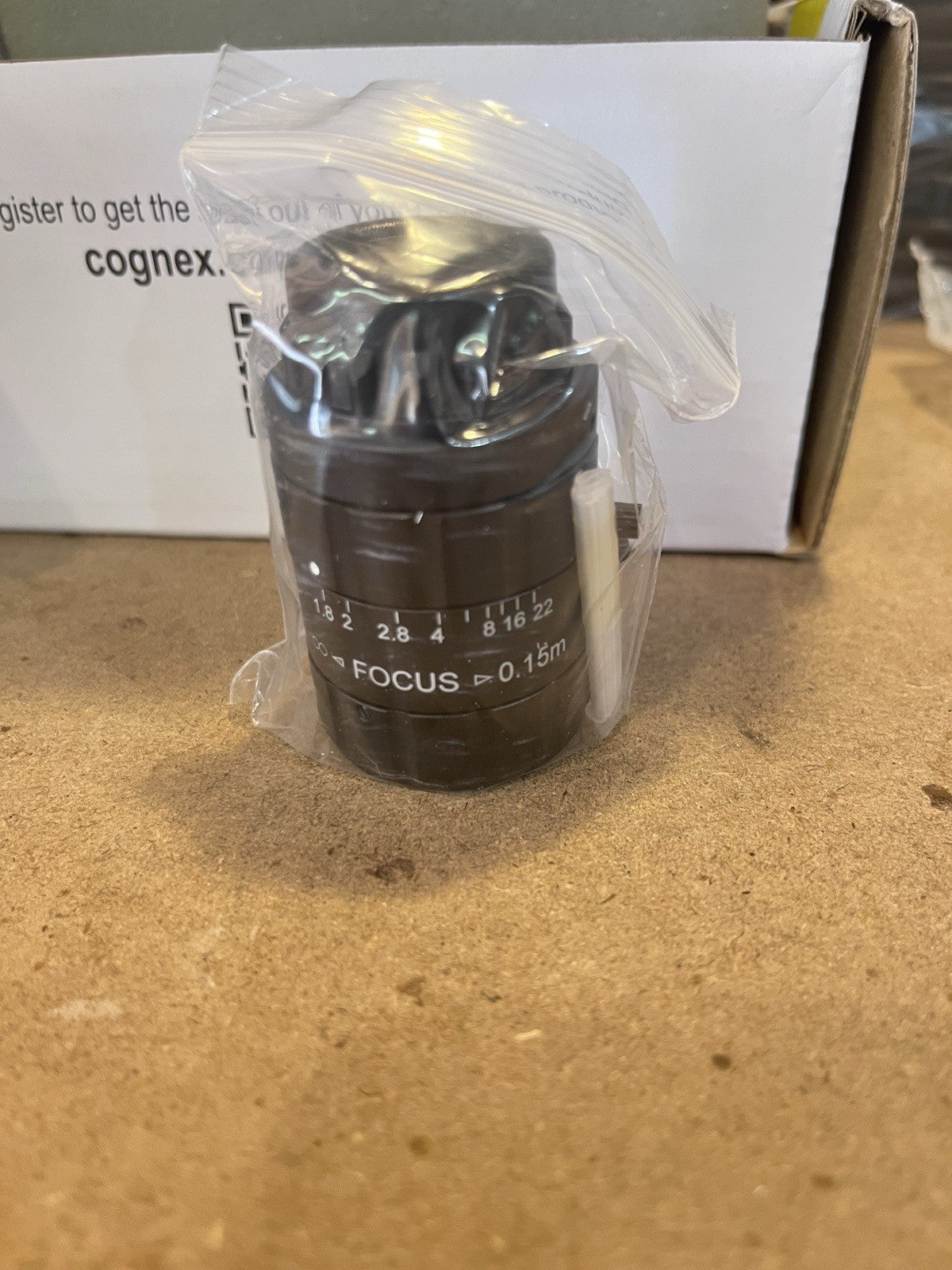

The included Edmund Optics 86-572 is a 25mm HP Series fixed focal length industrial machine vision lens.

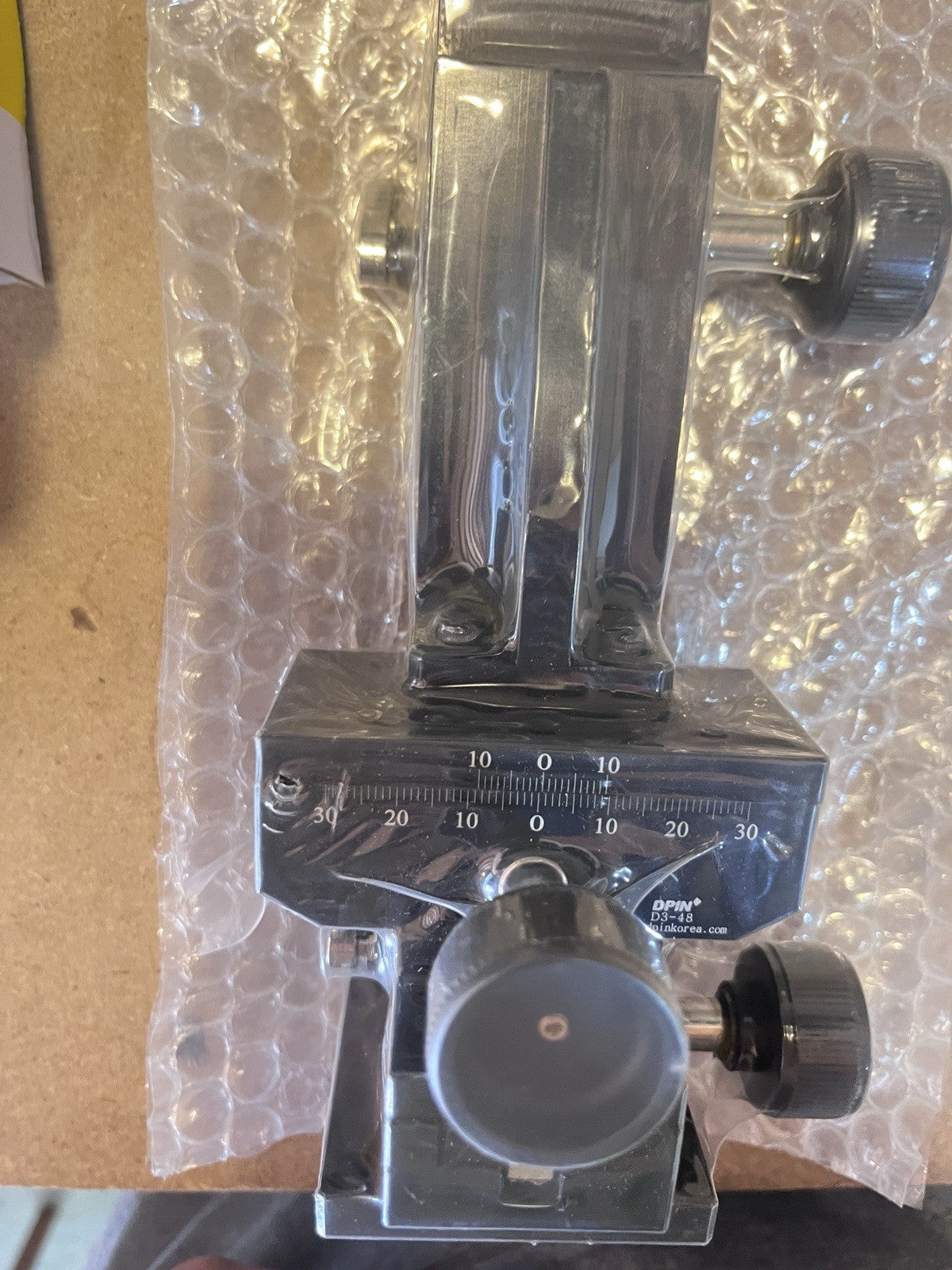

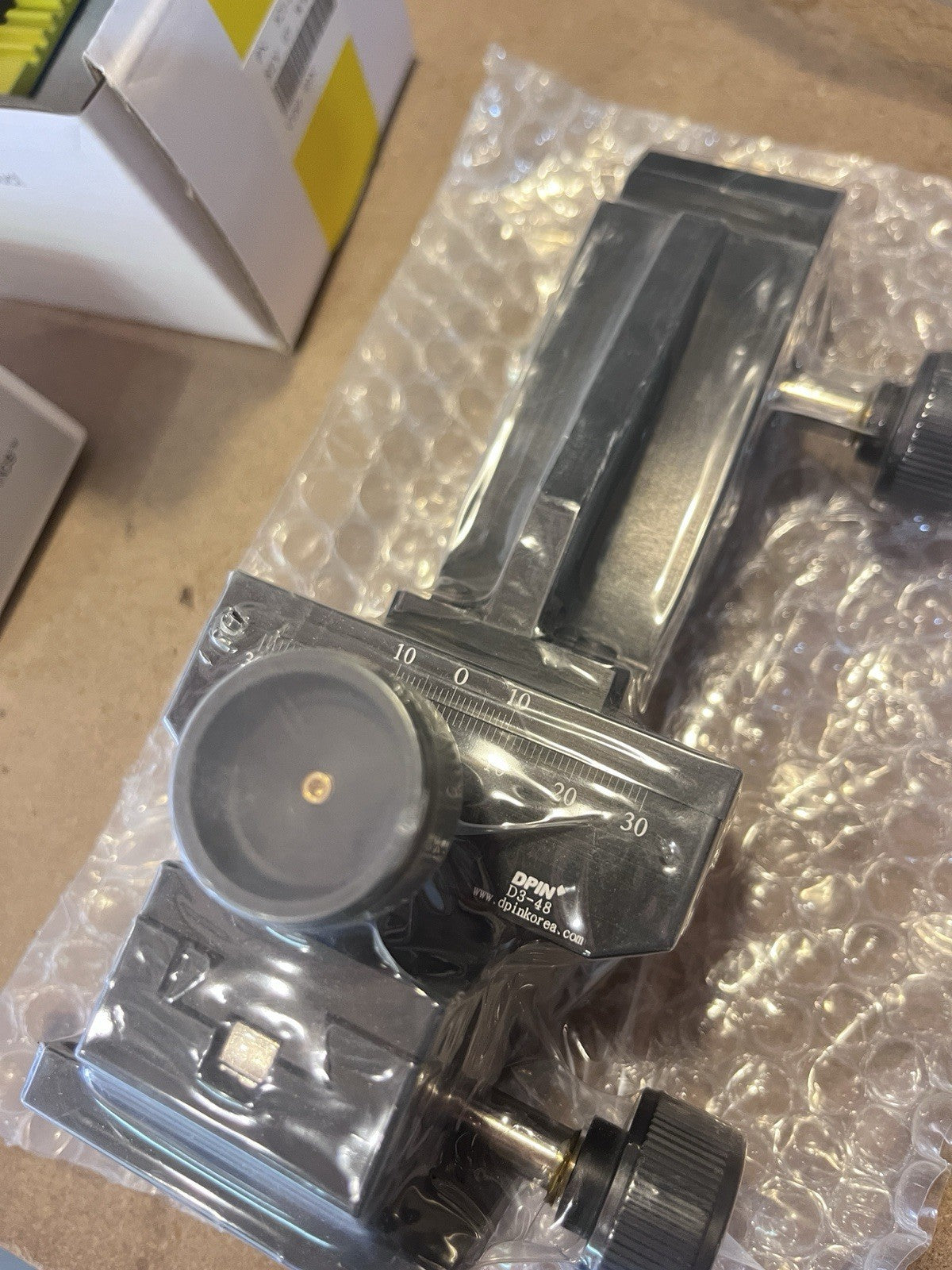

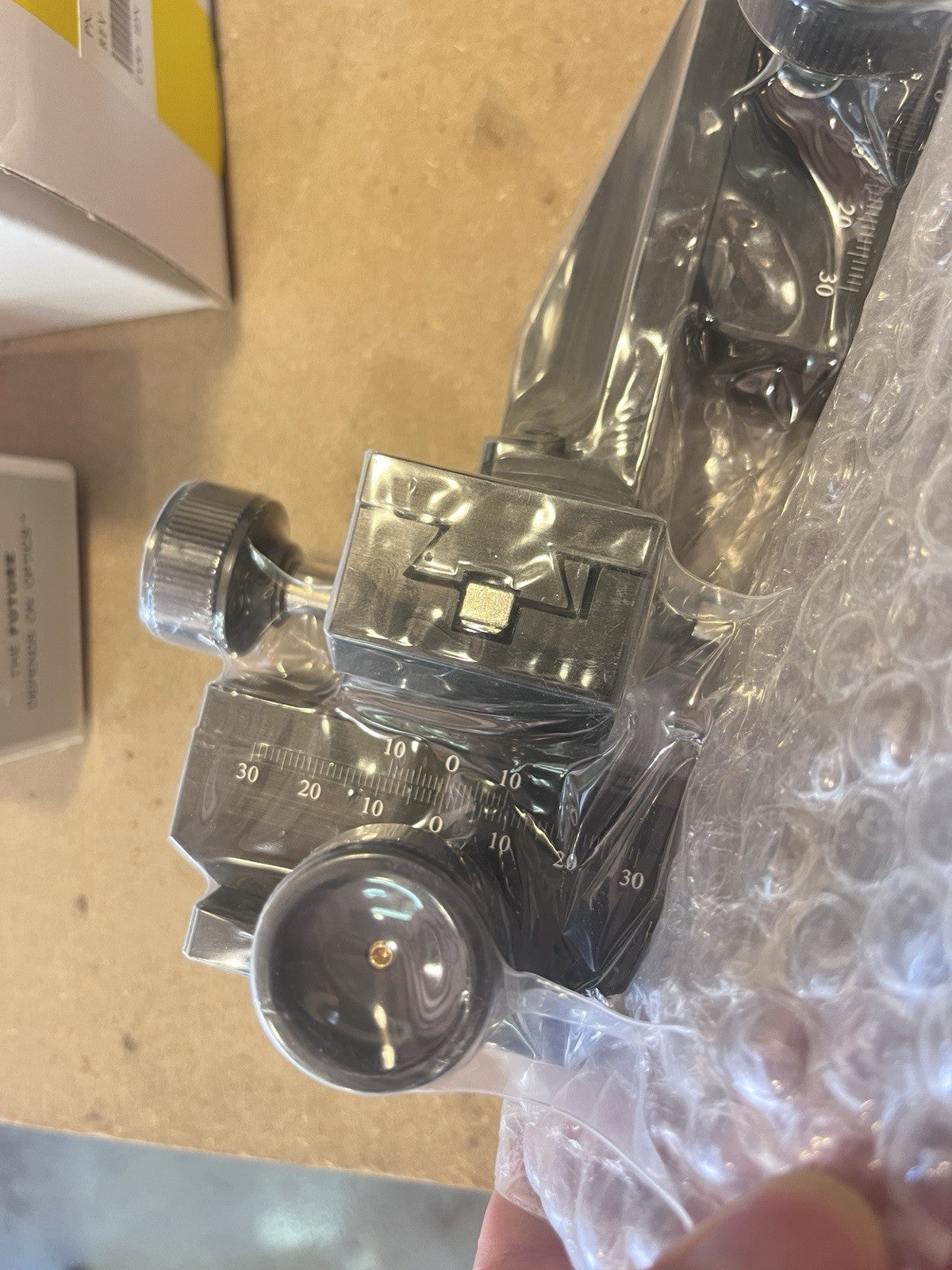

The DPIN D3-48 positioning stage is included to assist with fine mechanical alignment of the camera or optical assembly. It is not manufactured by Cognex.
Typical applications:
Automated inspection, part presence/absence, dimensional inspection, positioning, machine vision guidance, assembly verification and industrial identification.
Please note:
Ethernet cable, external light fixture, PLC, computer, power supply and other system components are not included unless specifically shown in the photos.
Sold exactly as pictured. Please verify compatibility with your application before purchase.
