Festo 16 Stations Valve Terminal CPX-FB23 526176 VMPA1-FB-EPL-GU 533372 CC-Link⁠

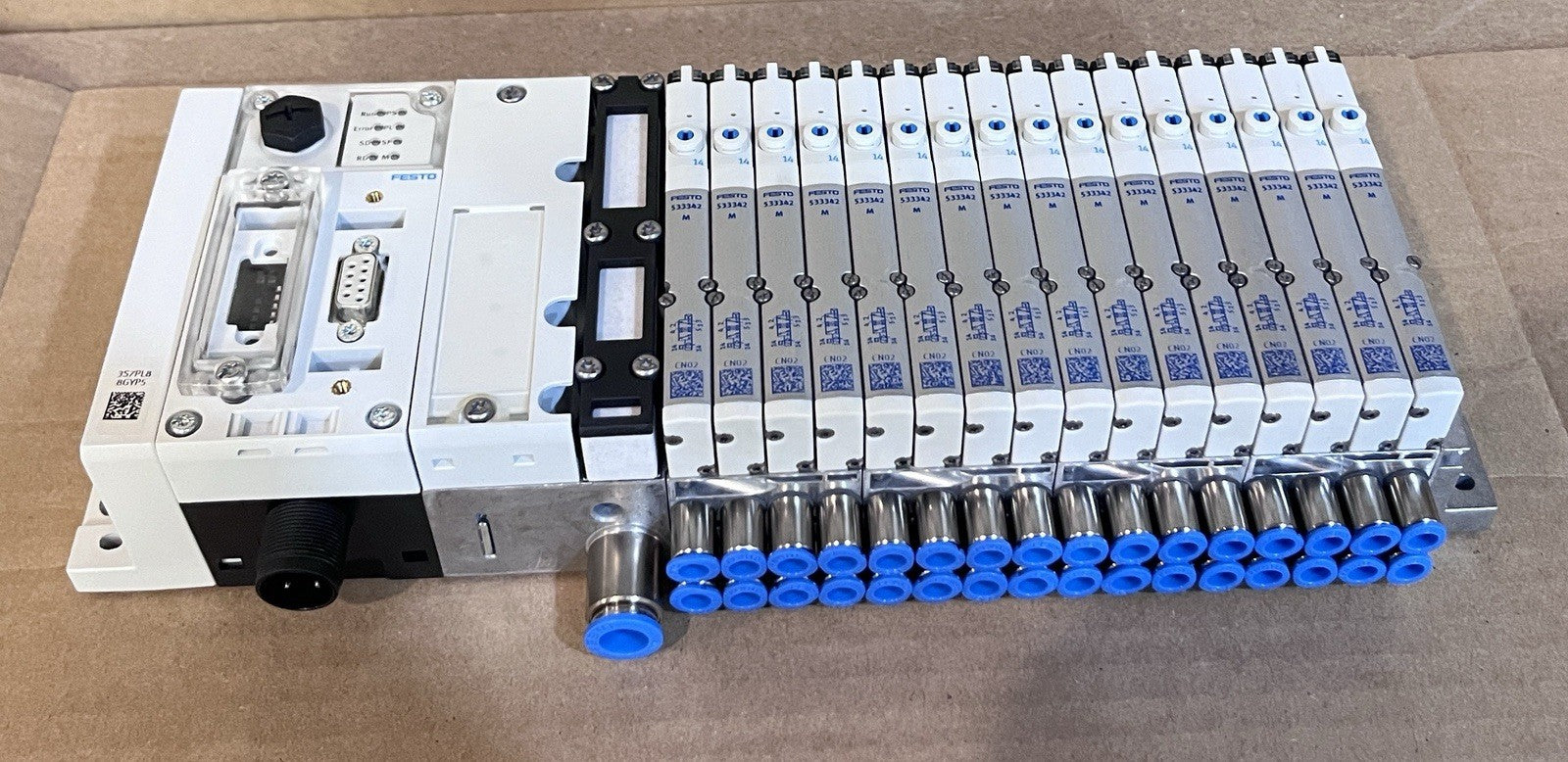

Festo CPX / MPA-S Modular Valve Terminal - 16 Stations (CC-Link)

Up for sale is a premium Festo modular valve terminal configuration, featuring a CPX electrical terminal and an MPA-S pneumatic valve manifold. This heavy-duty assembly features 16 active valve stations and communicates seamlessly over the CC-Link protocol.

The unit is in pristine, flawless cosmetic condition with zero industrial wear, residue, or scratches. It appears to be an unused warehouse surplus / open box item. Please check the high-resolution photos for exact physical details.

[ SYSTEM CONFIGURATION & PARTS LIST ]

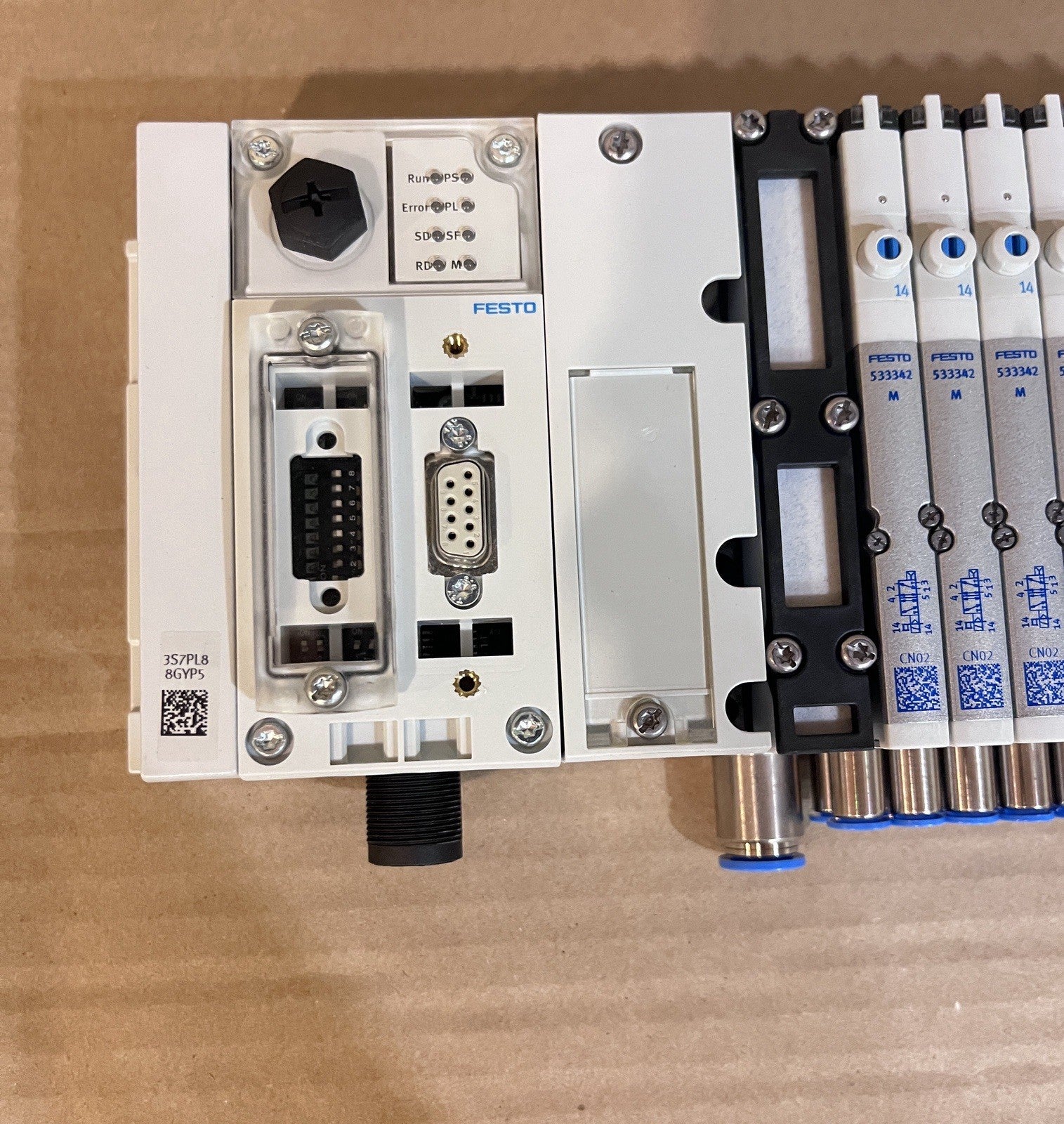

- 1x Festo CPX-FB23 Fieldbus Node (Part Number: 526176) - CC-Link Protocol

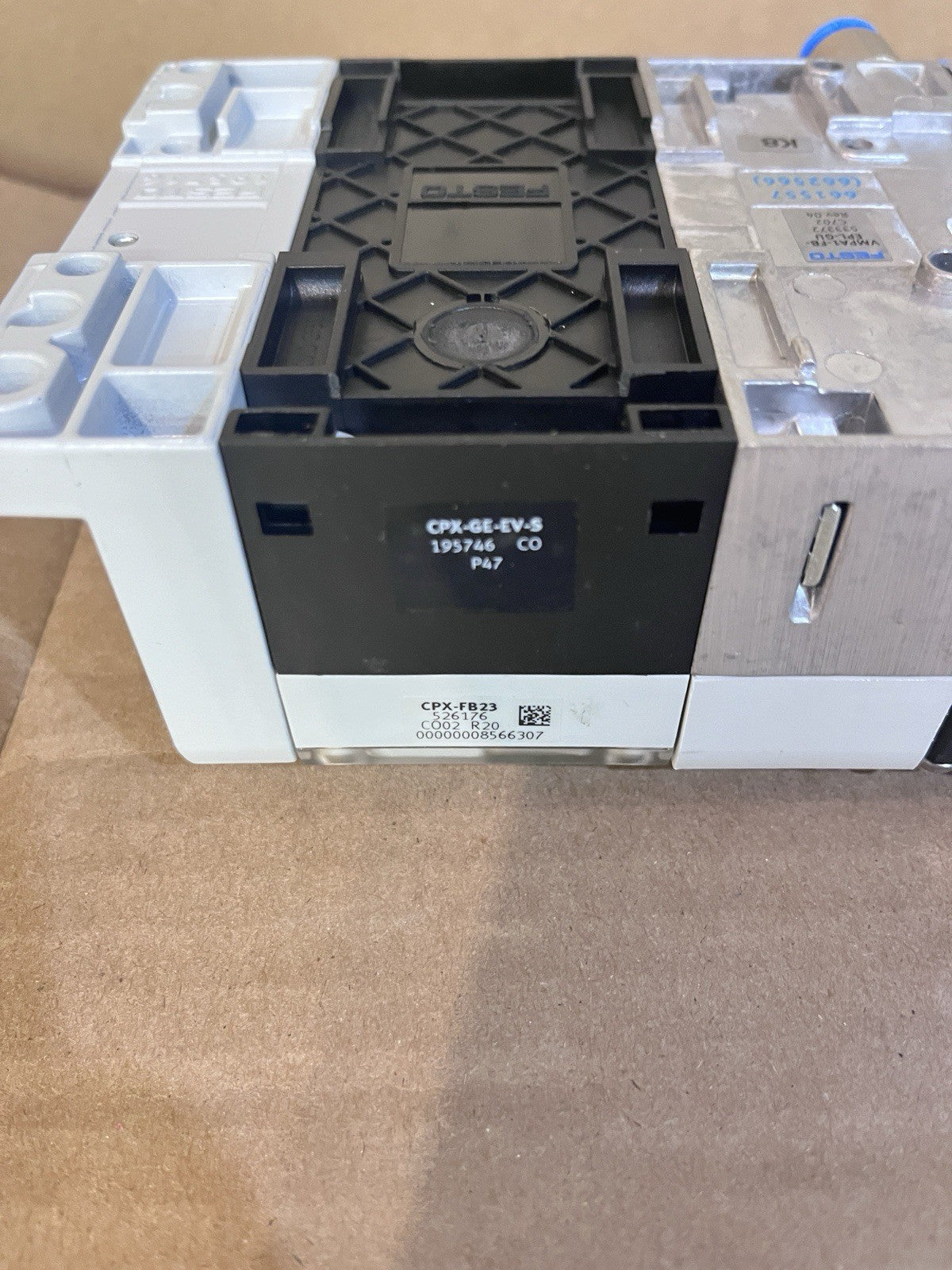

- 1x Festo CPX-GE-EV-S Intermodule Connection Block (Part Number: 195746) with Power Port

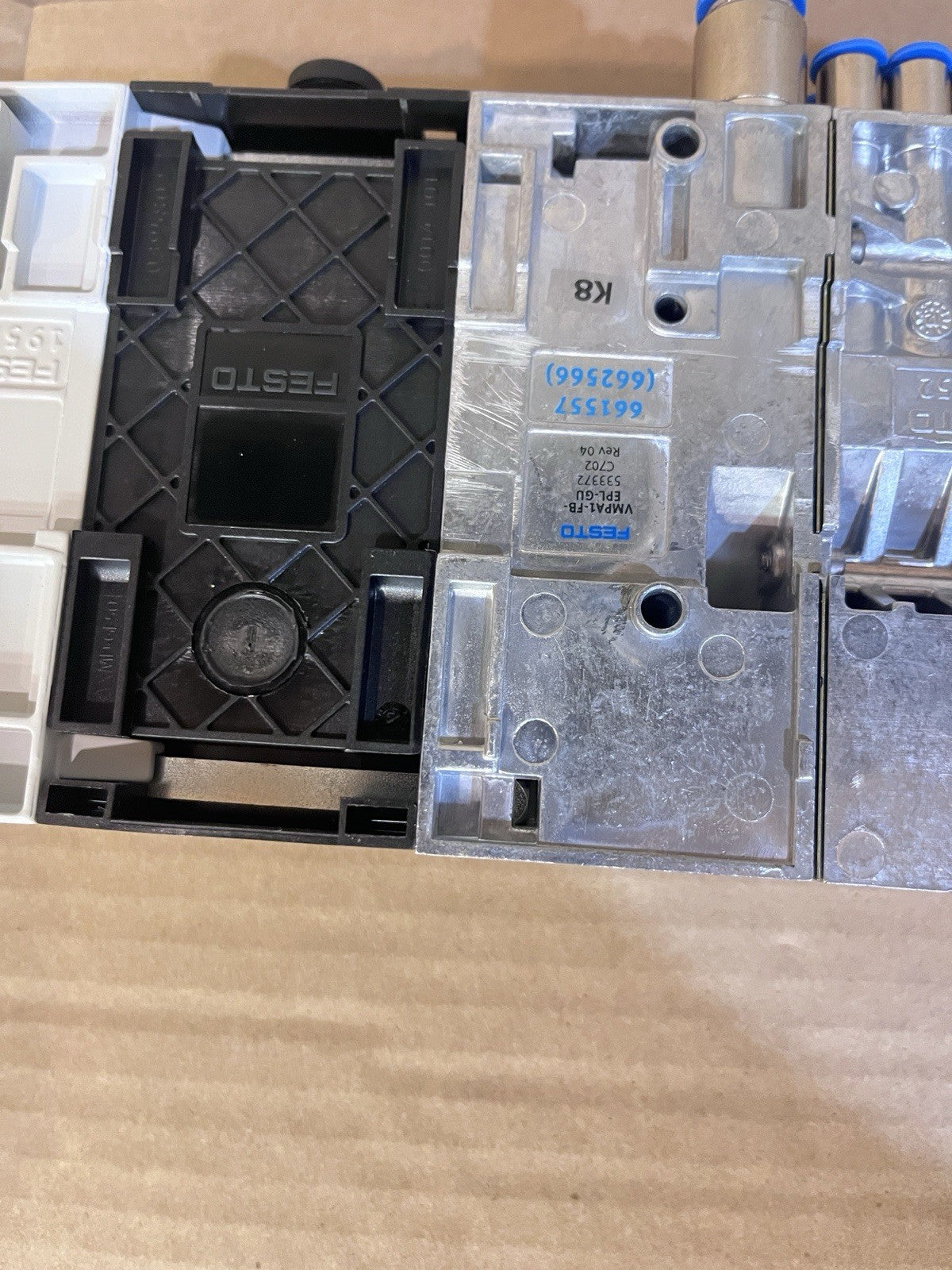

- 1x Festo VMPA1-FB-EPL-GU Supply Plate (Part Number: 533372)

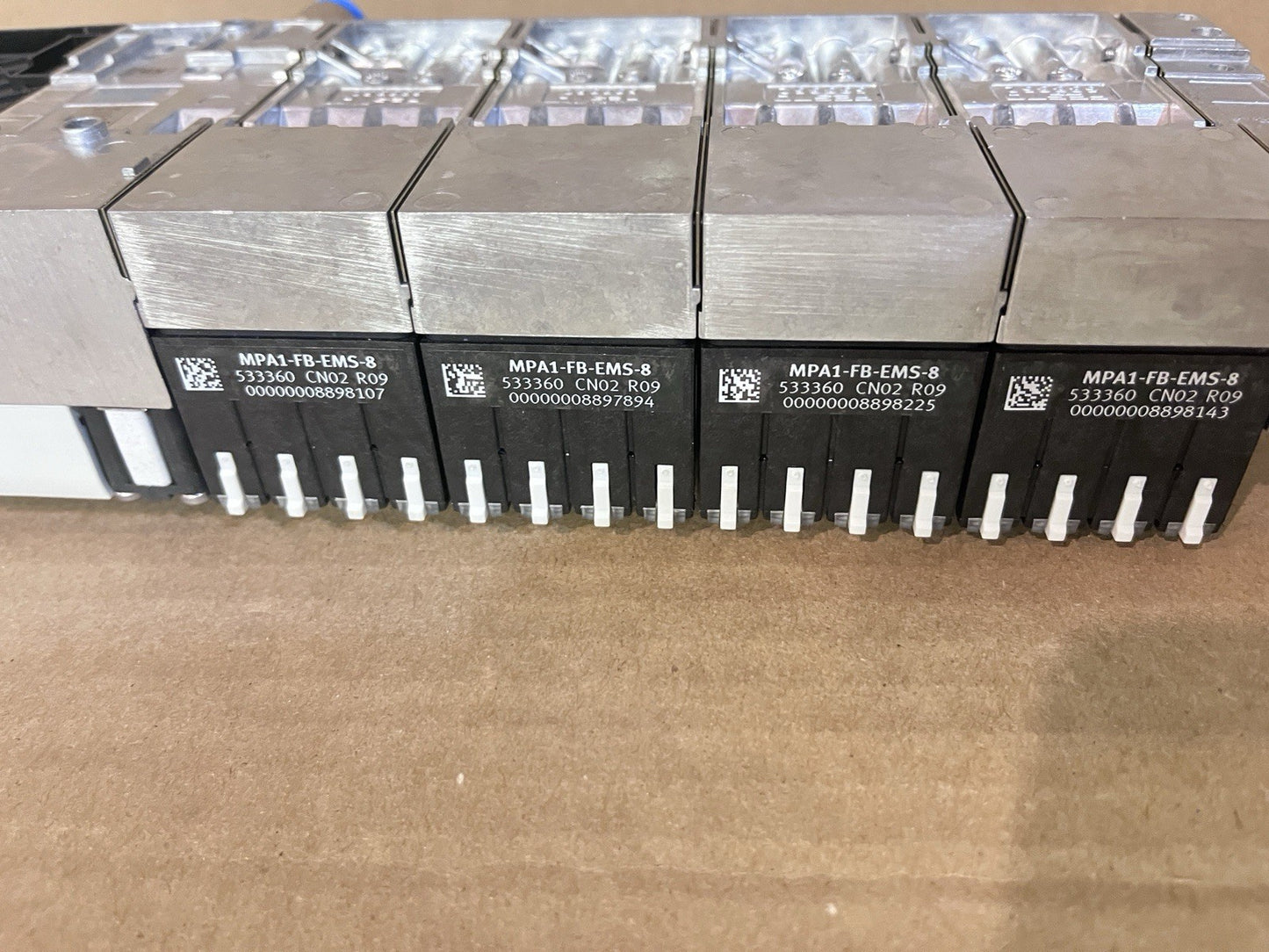

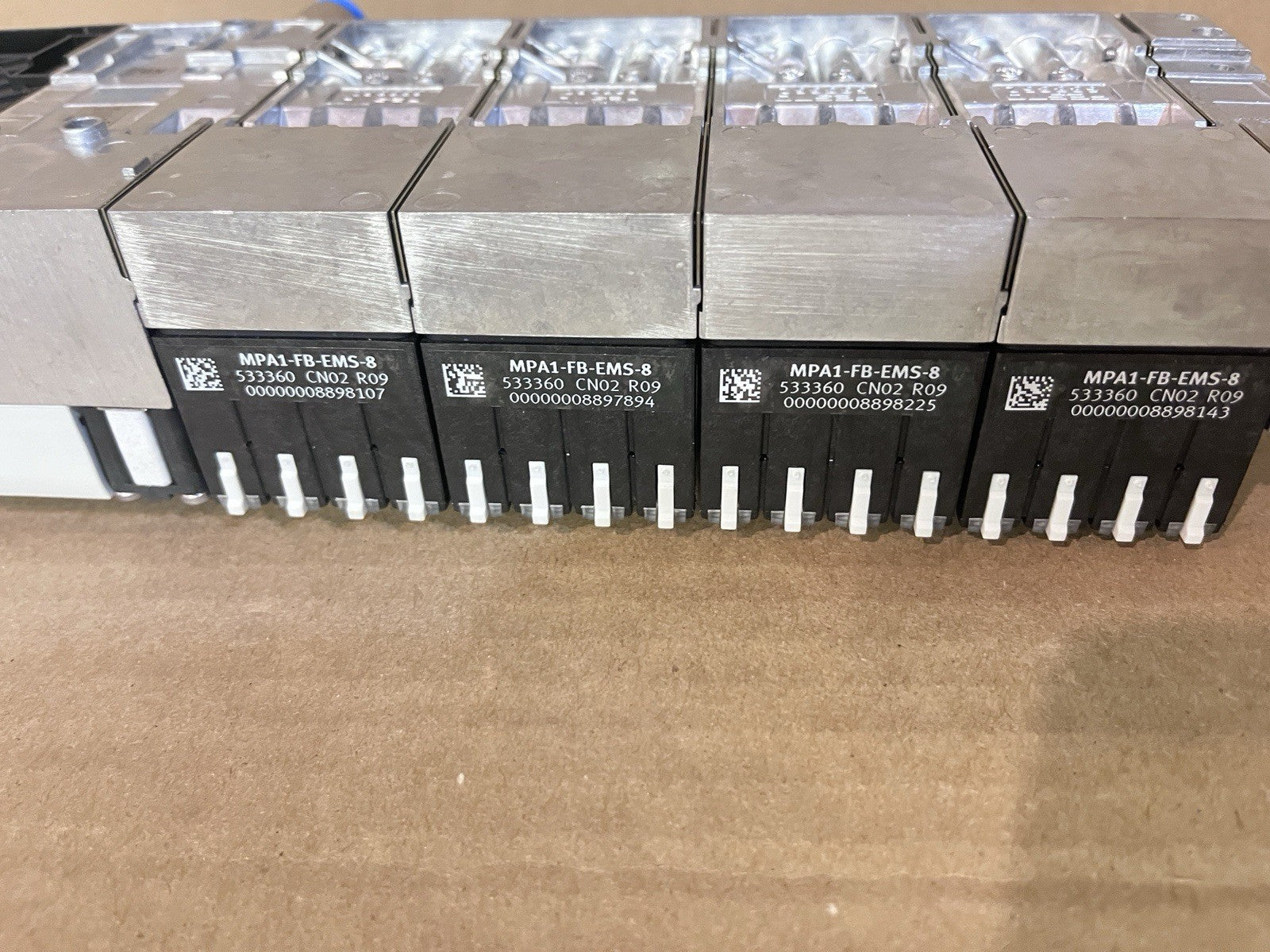

- 4x Festo MPA1-FB-EMS-8 Sub-bases (Part Number: 533360) - Expandable up to 32 positions

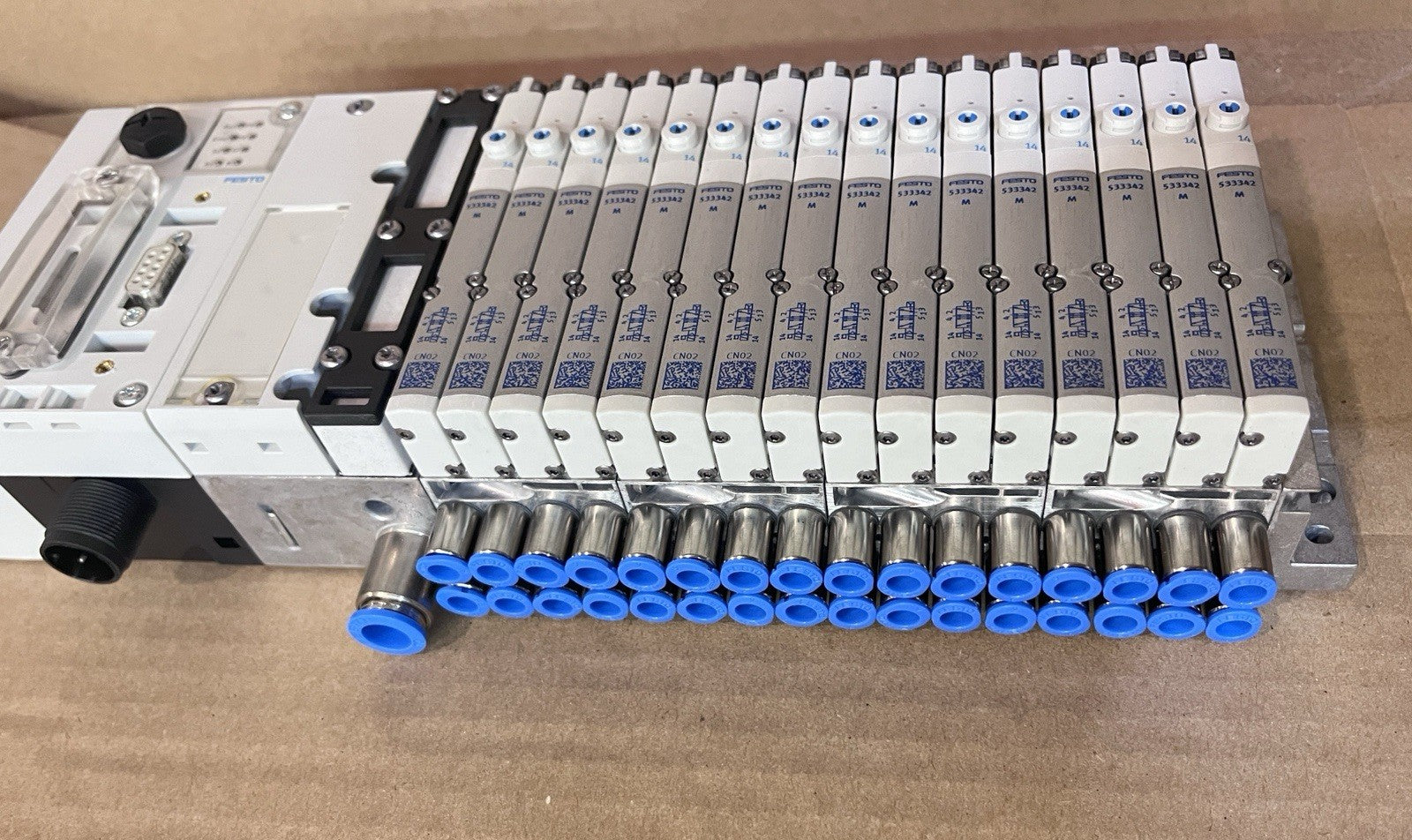

- 16x Festo MPA1 Solenoid Valves (Part Number: 533342) with Blue Push-in Fittings

[ TECHNICAL SPECIFICATIONS ]

- Protocol: CC-Link Interface

- Number of Active Positions: 16 Stations

- Voltage: 24V DC

- Sub-base Capacity: 4x 8-position blocks (Total 32-position manifold capacity)

- Fitting Type: Blue pneumatic push-in fittings

[ SHIPPING & HANDLING ]

- Professionally packaged with heavy bubble wrap to protect the blue pneumatic fittings.

- Shipped within 1 business day with tracking information provided.

Please contact us if you require any specific technical details or measurements.
