Macromatic PMPU 3-Phase Monitor Relays Checked and Packed Before Shipment

Two Macromatic PMPU three-phase monitor relays came across our packing table this week.

Before packing the order, we checked the product labels against the boxes, looked over the housings and visible markings, and inspected the plug-in pins for obvious shipping or handling damage. The two units were then returned to their protective packaging and packed for transit.

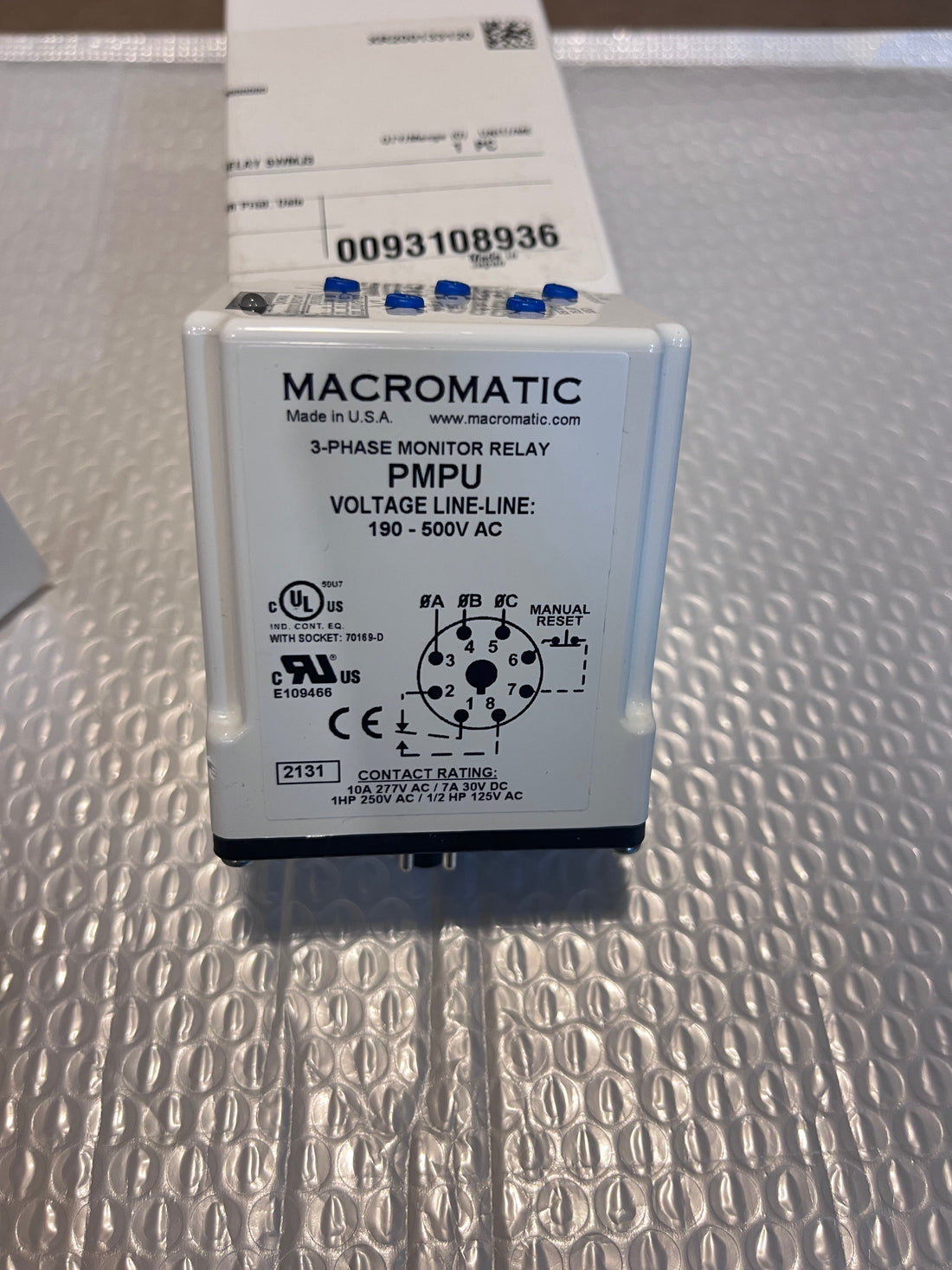

Product details visible on the units

• Manufacturer: Macromatic

• Model: PMPU

• Product type: Three-phase monitor relay

• Monitored line-to-line voltage shown on the label: 190–500 V AC

• Configuration: 8-pin plug-in

• Socket identified on the label: 70169-D

• Contact rating shown on the label: 10 A at 277 V AC / 7 A at 30 V DC

According to Macromatic, the PMPU is designed to monitor three-phase systems for conditions including phase loss, phase reversal, phase unbalance, undervoltage and overvoltage. System compatibility and settings should always be confirmed against the manufacturer’s current documentation before installation.

This was a pre-shipment visual and identification check. It should not be interpreted as a complete powered functional test or as an installation recommendation.

Panda Industrial Supply is based in Windsor, Ontario, Canada. We supply industrial automation and control components and also help customers source discontinued and hard-to-find part numbers.

If you are looking for a Macromatic relay or another difficult-to-source industrial component, send us the manufacturer, complete part number and any available equipment details.
